All-in-One Sprinter Van Kitchen: Compact, Durable & Removable

The All-in-One Kitchen is a fully self-contained unit, thoughtfully designed to maximize space and functionality for your Sprinter van build. Whether you're cooking, cleaning, or enjoying the outdoors, this versatile kitchen unit has you covered. Built with premium materials and engineered for durability, it’s the ultimate compact kitchen solution for van life.

---

Fresh Water: 13 Gallons

Gray Water: 5 Gallons (optional)

Hot Water: 1.5 Gallons

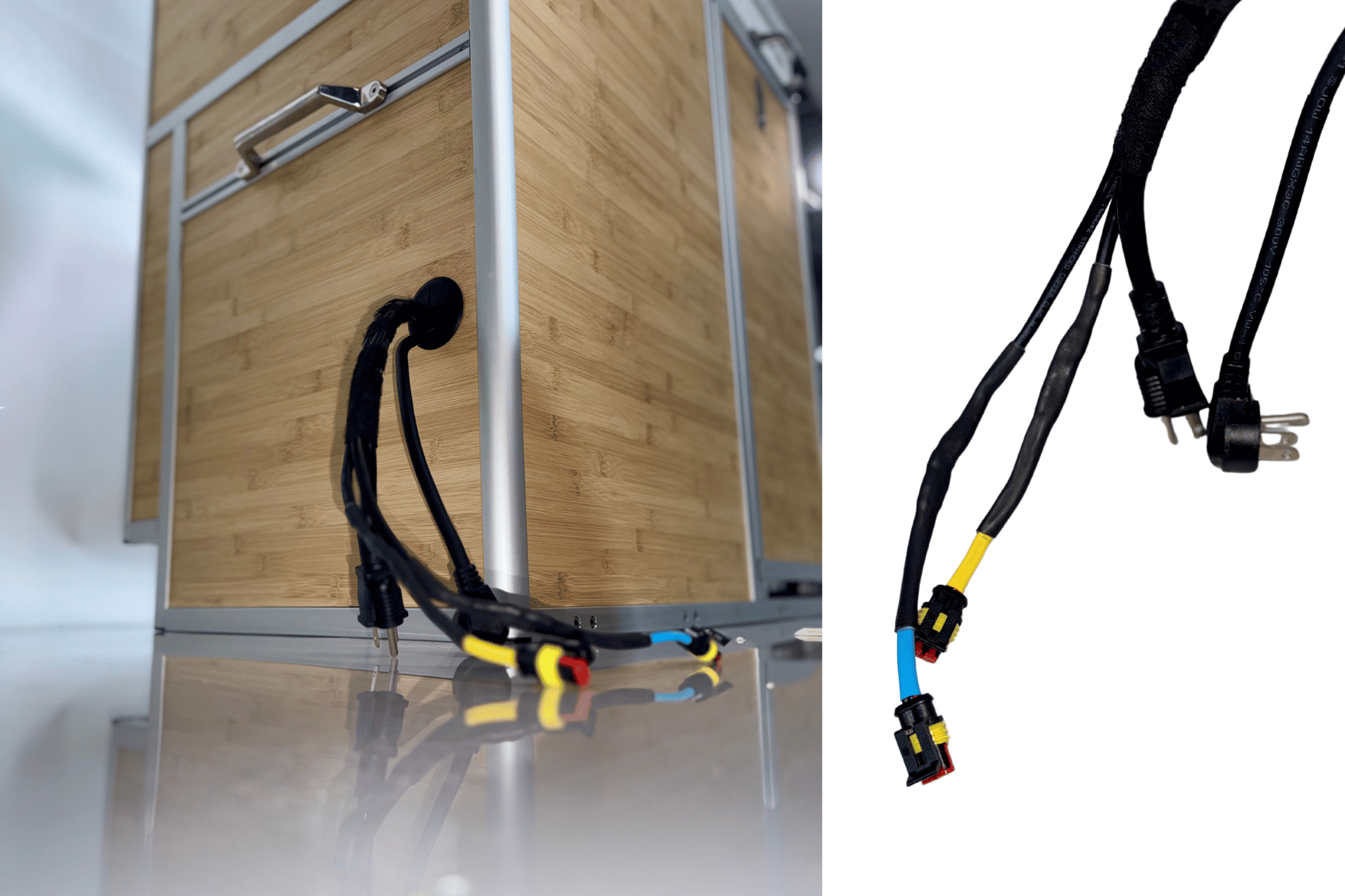

Requires: 12v and 110v

---

Complete Kitchen System

This true all-in-one solution is entirely self-contained and engineered for both functionality and mobility. It is fully stand-alone, meaning you don’t need to tie it into existing systems in your van. Plus, it’s removable  with the help of a few extra hands—perfect for modular setups or if you need to use the space differently.

Innovative Design

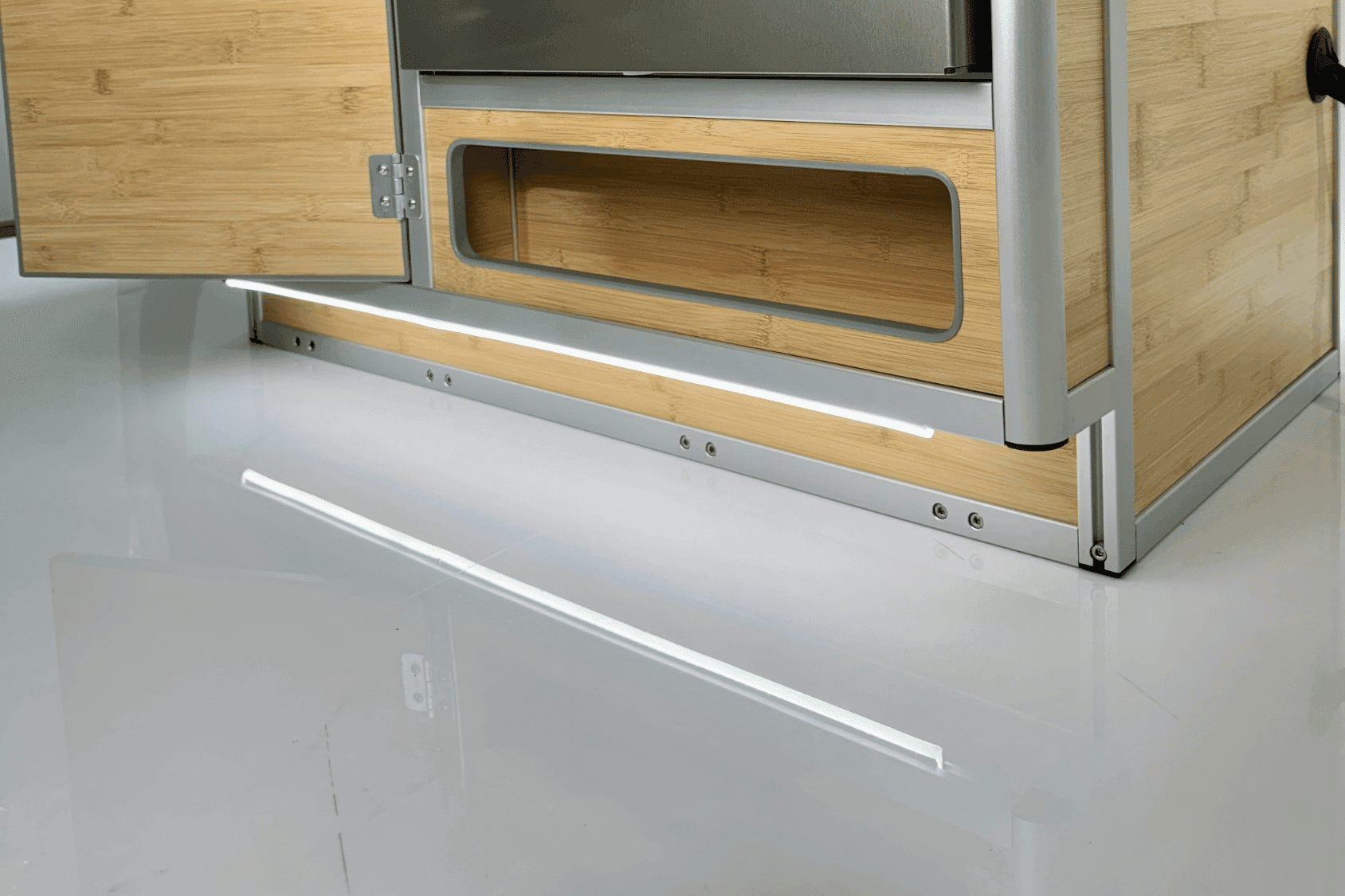

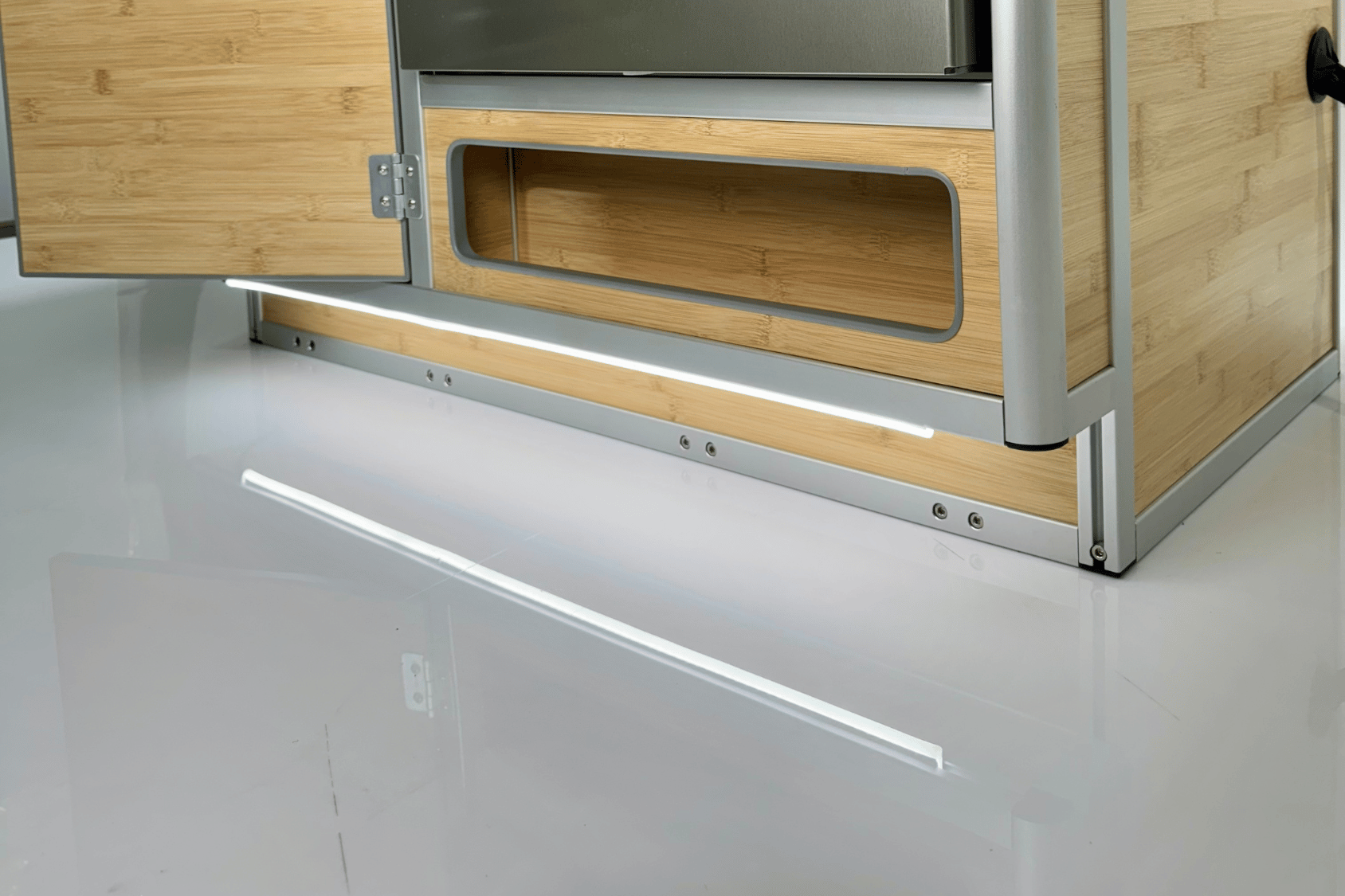

• Space-Conscious Features:  Includes a thoughtful toe kick with an integrated under-light for better nighttime visibility in tight spaces.

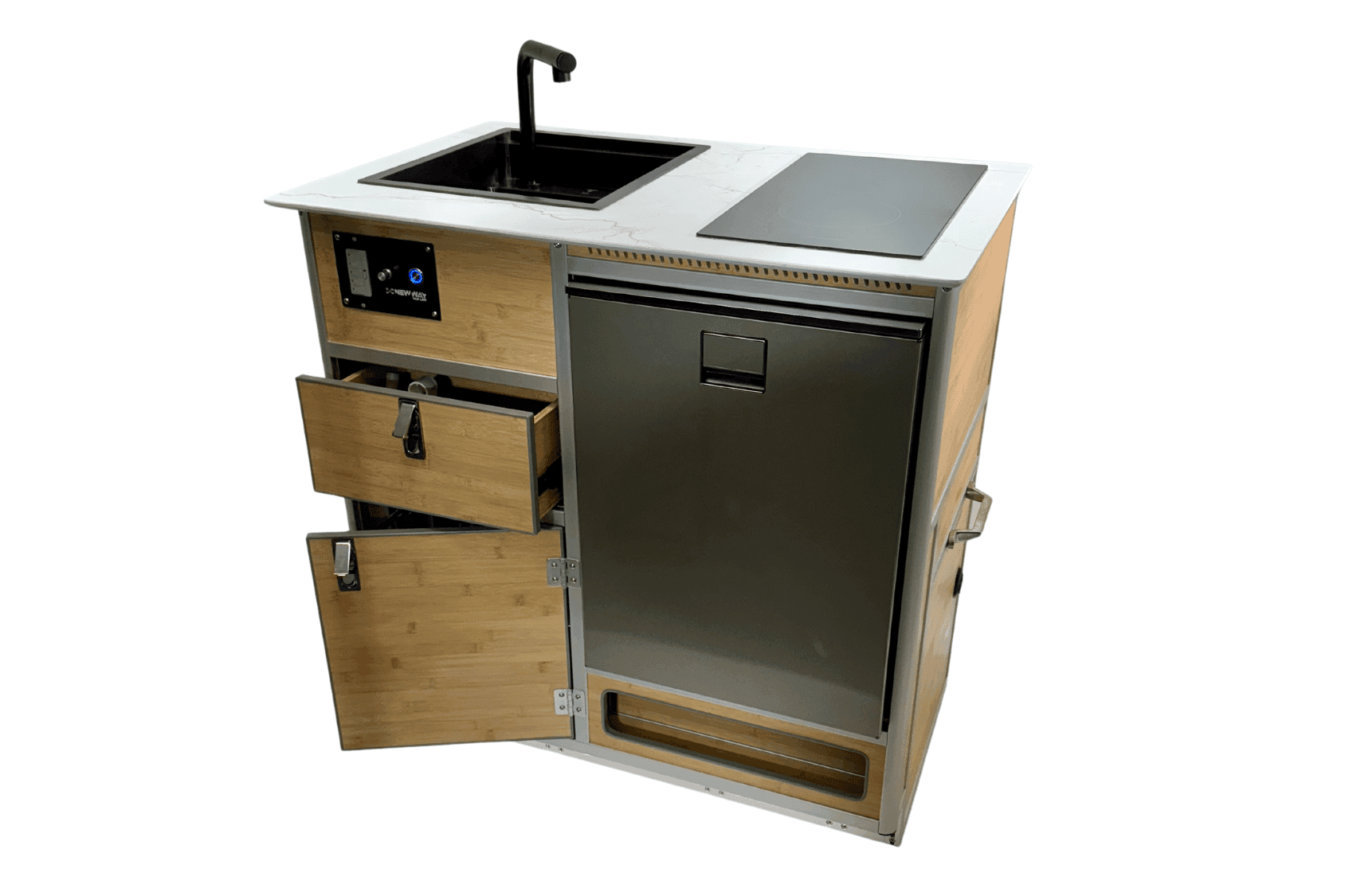

• Accessible Fridge: Equipped with the OFF-Indel B DR85 front-loading refrigerator. This fridge offers dual-sided access, allowing you to open it from either the kitchen—a game-changer in small living spaces.

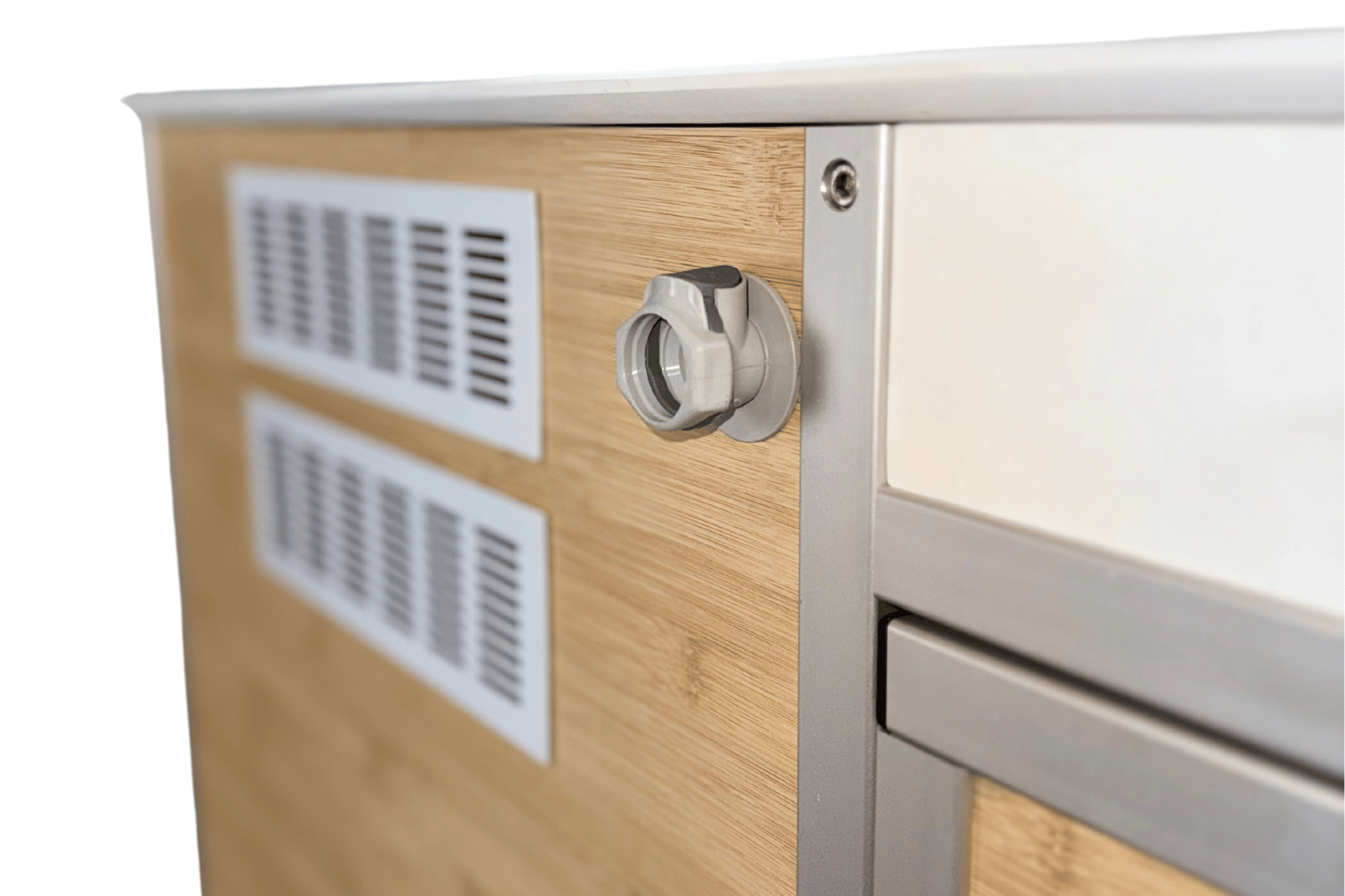

• Seamless Shower Connection: Includes a thermostatic mixing valve and a 118” quick-connect shower hose with a flow control valve and low-flow High Sierra nozzle, this special mixing valve pre-mixes your hot and cold water to your desired (set) temperature.
• Mounting Cradle: Safely and securely mount and remove your All-In-One Kitchen after mounting the cradle to your floor.

---

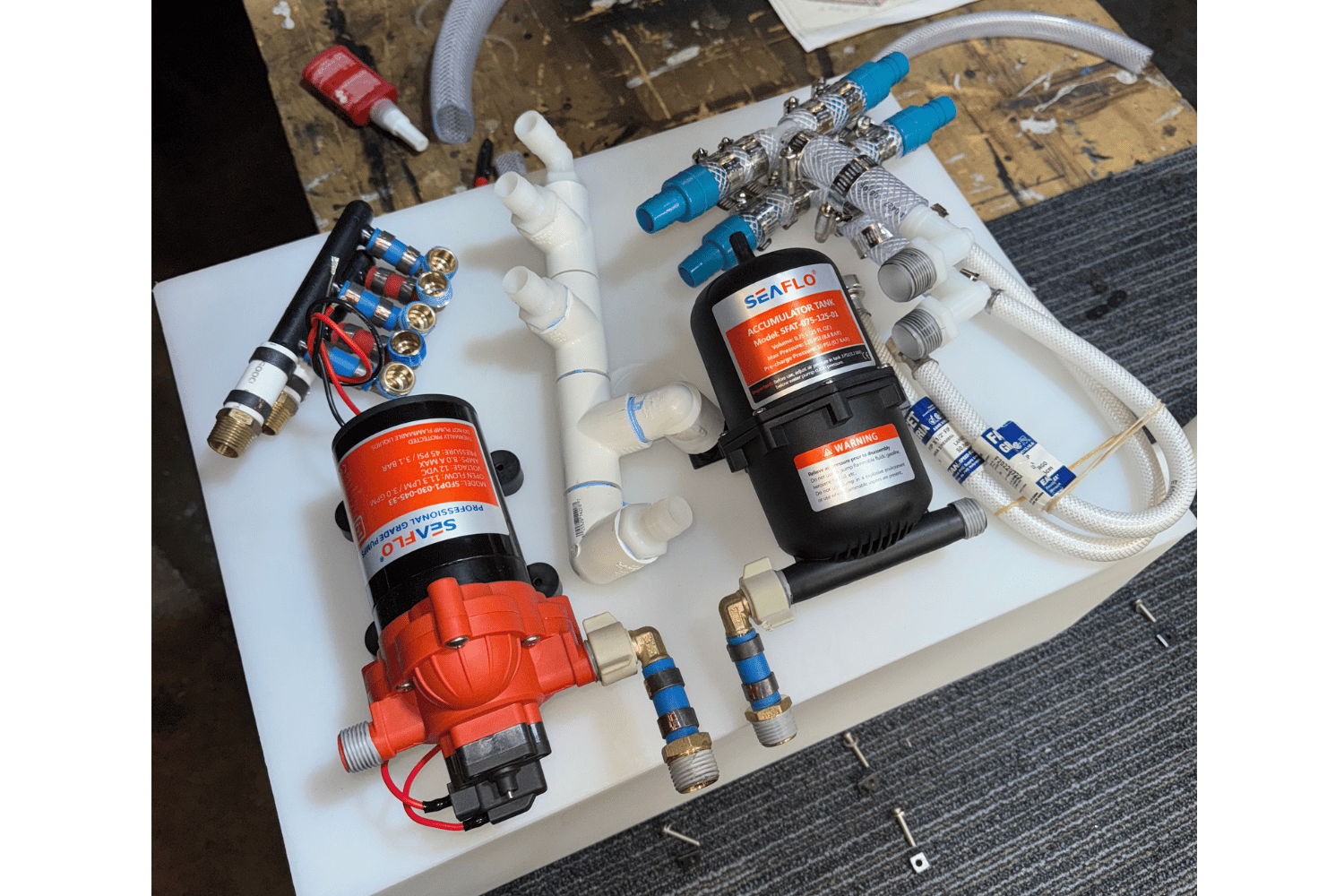

Premium Plumbing System

Designed for reliability, the plumbing system features high-quality materials and thoughtful engineering for easy maintenance and efficient operation.

• Fresh & Gray Water Tanks: Includes a 13-gallon gravity-fed fresh water tank and a 5-gallon gray water tank. Both tanks feature breather/overflow devices integrated through the floor-mounted manifold for easy emptying, overflow protection, and continuous drainage at approved dump sites.
• Thermostatic Mixing Valve: Eliminates the need to manually control hot and cold water temperatures by automatically mixing at your specified tempurature.
• On/Off Valves: Strategically placed throughout the system for easy isolation during maintenance.
• Strainer: Filters debris on the fresh tank’s feed side, ensuring clean and safe water flow.

Durable Construction

This kitchen is built to handle the rigors of van life. The thoughtful engineering ensures long-lasting performance.

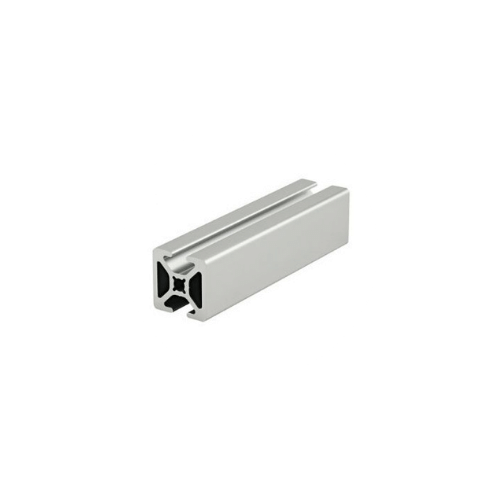

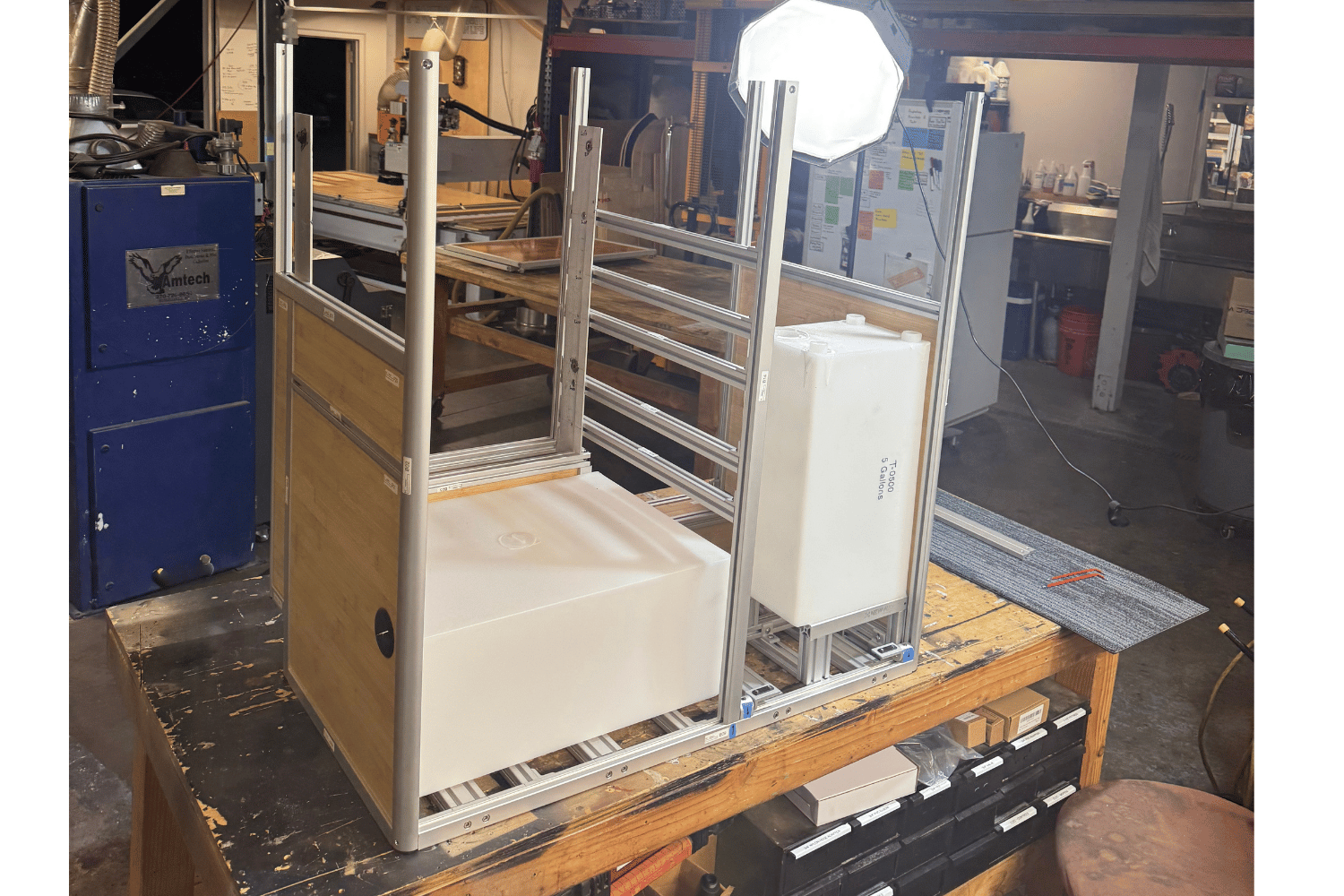

• Rock-Solid Frame: Fully framed internally and externally with 1x1 aluminum extrusion, providing exceptional strength and a reliable base for safe mounting. This rugged frame ensures the unit stays solid in all road conditions.
• High-Quality Materials: The cabinetry is built from durable 1/2” wood paneling inlaid into the aluminum framing. Optional synthetic marble countertop for a polished finish is available.

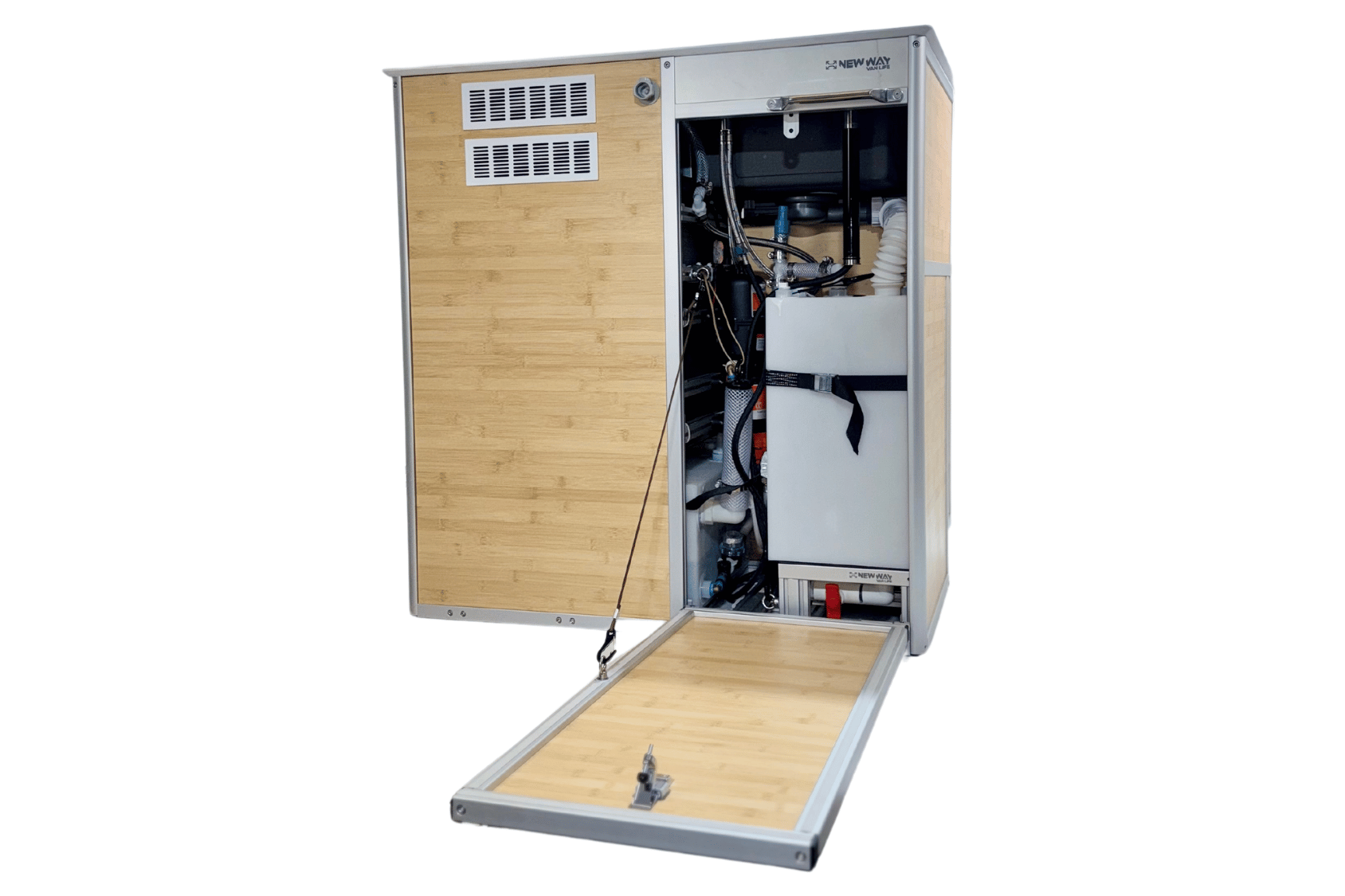

• Compact Storage: Includes a soft-close front storage drawer, a front access cubby for maintenance, and a drop-down rear door that doubles as an outdoor table (when placed on slider door entry).

---

Electrical Features

Efficiently designed to power everything you need without complicating your van’s electrical system.

• Dedicated Circuits:
  • 110V hot water heater on a timer for efficient power use.
  • Optional 2-burner induction stove with its own 110V plug.
  • Fridge and under-cabinet lighting (dimmer on control panel) share a single 12V circuit.
  • Water pump operates on its own 12V circuit, controlled by a switch on the control panel.

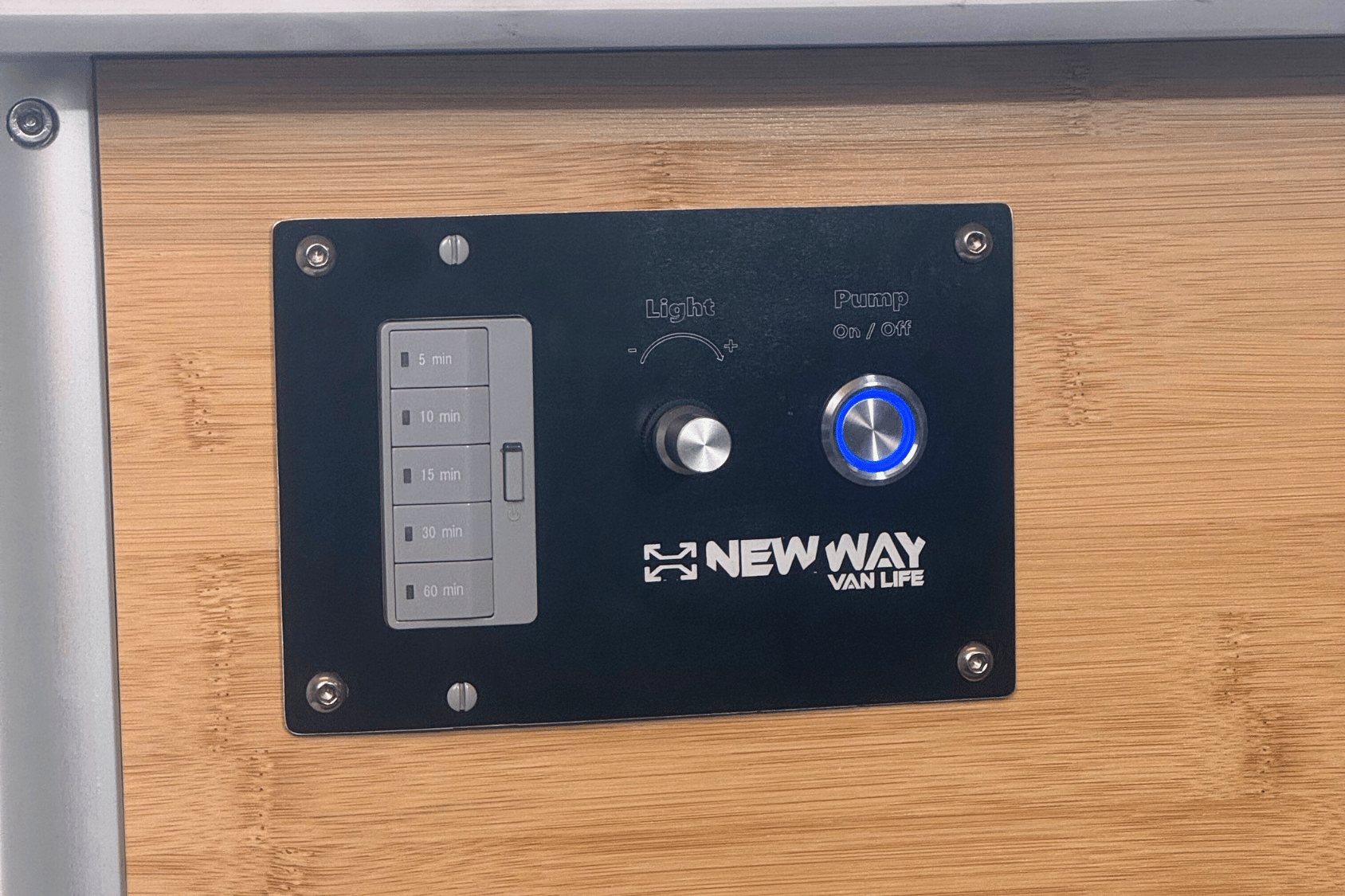

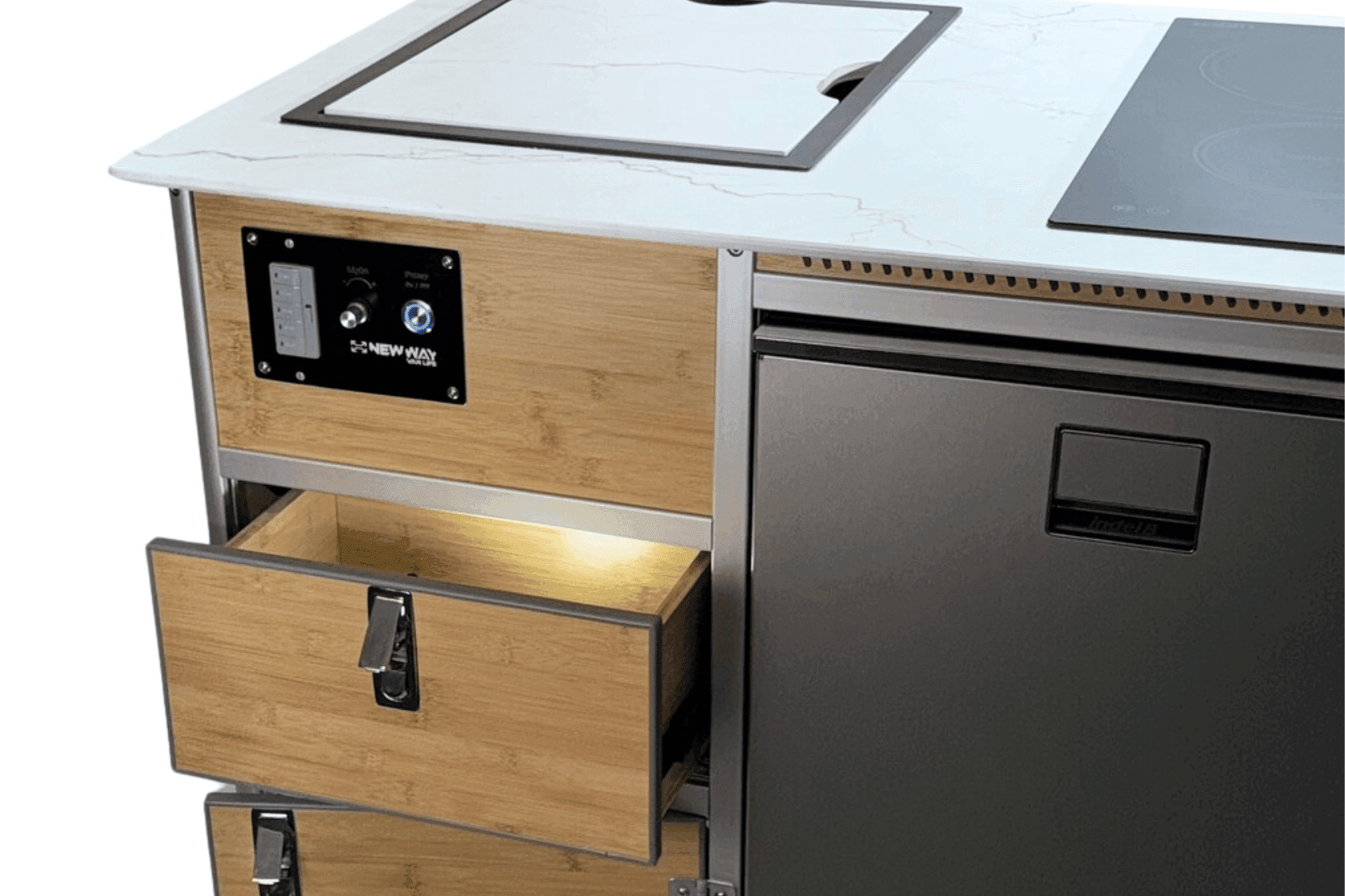

• Integrated Control Center: Includes switches for the pump, lighting, and hot water heater, along with a dimmer for precise lighting control.
• Optional DIY Tank Monitoring: Add Mopeka sensors for easy DIY monitoring of fresh and gray tank levels through a no-drill setup and monitor from your mobile device.

---

Why Choose the All-in-One Kitchen?

This kitchen is the ultimate van life solution, designed with the perfect combination of mobility, durability, and convenience.

• Fully Stand-Alone: No need to integrate into existing van systems, making it ideal for modular and versatile setups.
• Easy Maintenance: Integrated on/off valves and the plumbing manifold make isolating and maintaining the system simple.
• Dual-Purpose Design: The drop-down rear table is perfect for cooking or outdoor lounging.
• Rock-Solid Build: The aluminum extrusion frame and inlaid wood paneling provides unmatched stability, durability, and safety when compared to other all plywood options.
• Effortless Accessibility: Features like the dual-access fridge and compact design prioritize ease of use in small spaces.
